The Network Center : Access : Examples

Your Browser must accept Cookies from north-ridge.com to allow individualized processing

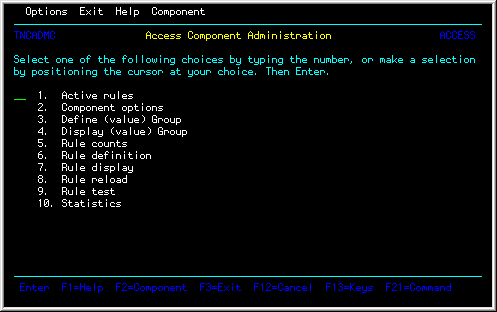

Rule Management

The Access Administration panel provides an extensive menu of tools for centralized control over session establishment in your local domain:

Access Rule Example

Active rules
lists the currently active Rules for Access
Component options
sets the active Rules and the Rule mode
Define (value) Group
sets the processing order for one or more Rules, Rulesets or Groups
Display (value) Group
displays a Group or Value Group for viewing or modification
Rule counts
displays how many times each Rule gets used
Rule definition
contains operands for specifying whether a particular session should be allowed or denied
Rule display
displays a Rule or Ruleset for modification or viewing
Rule reload
refreshes the Active Rules with any changes made to the Rules, Rulests, or Groups
Rule test
creates sample sessions to test against your Rules
Statistics
lists session activity that is being monitored by Access

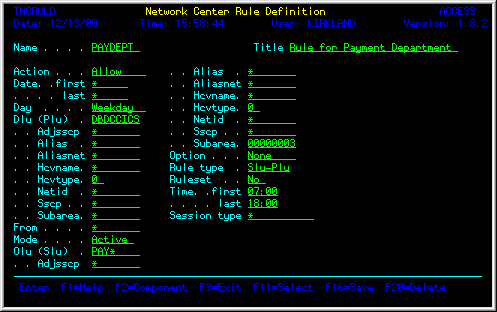

Access Rule Definition

The Rule Definition panel provides a wide range of operands for defining specific or general rules that allow or deny session establishment. For example, let's say you only want to allow a remote Payment Department's staff to access your production CICS system during peak business hours:

Access Rule Example

In this example you will "Allow" terminal devices beginning with "PAY" from Subarea "3" to establish a session with "DBDCCICS" between "07:00"(7:00am) and "18:00" (6:00pm) on any Weekday (Monday - Friday); any other LU's or those LU's outside of the time and day interval will be denied session establishment.

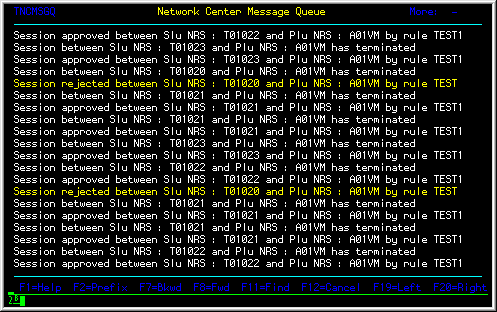

Access Session Monitor

The following example demonstrates the real-time monitoring viewpoint, including Rule-based approvals and denials, provided by the Message Queue:

Access Rule Activity

Real-life Examples!

The best way to experience all of Access' session control features is by actually using it, which is why we offer a free 30-day trial. You can use your trial software on your production system or create a test environment using Access' testing facilities. And it's hassle free: If Access isn't right for your installation, there are no further obligations or sales contacts.
